Stochastic Contribution

Stochastic Contribution

1. Click on the first icon "New plot" on the menu bar of the plot window to restart the viewer again.

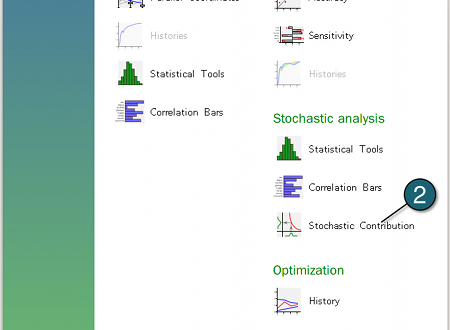

2. Choose Stochastic Contribution for this time.

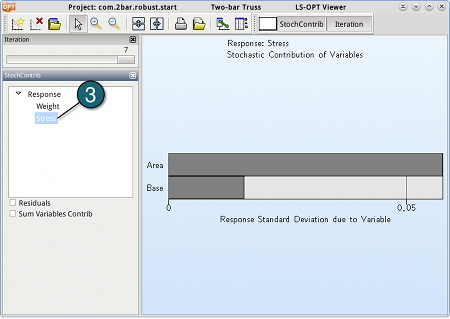

3. Select the response Stress.

→ The standard deviation of the Stress response due to all variables is 0.06. Almost all of the variation of the Stress response is caused by the variable Area.
